Granular Material Weighing
Granular material rotary feeder
Granular material rotary feeder

Granular Material Rotary Feeder

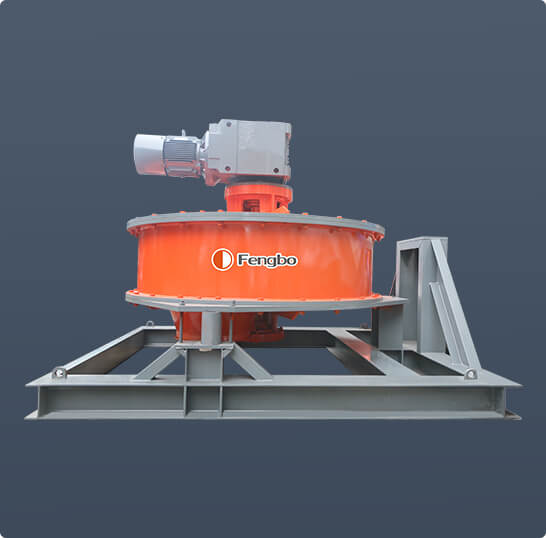

FB-RCM type granular material weighing scale, clinker scale and rotor scale have simple measuring principle and compact structure. They can withstand high temperatures below 250℃, have low failure rate and are easy to maintain. The scale structure is fully sealed and will not cause environmental problems. , there is no need to install a separate valve, and the cement clinker unloading speed can be controlled by its own speed.

Applicable:Measurement of granular materials such as bulk clinker, bulk aggregate, and clinker ingredients

Accuracy:±0.5%

Flow Rate:10~450m³/h

Documentation Download

PRODUCT FEATURES

1. High temperature resistance, wear resistance, no jamming. The scale body can withstand 250°C, the interior is wear-resistant, the rotor gap is small, and the material can be loaded smoothly without jamming;
2. Stable feeding, variable frequency speed regulation, and controllable feeding speed;
3. The scale body structure is fully sealed, environmentally friendly and has no dust problems, reducing environmental pollution and improving the working environment;
4. The installation height of the scale body is only 1000mm, making it easy to modify and install.

RELATED VIDEOS

Parameters

Granular material batching measurement
TypeWeighing Range
FB-RBM5010~50m³/h
FB-RBM10020~100m³/h
FB-RBM20040~200m³/h
FB-RBM30060~300m³/h
Bulk measurement of granular materials
TypeWeighing Range
FB-RCM300300m³/h
FB-RCM450450m³/h
