FB-DRWF series double-layer rotor can realize the effect of physical accumulation and sealing of powder, and locking the pulverized material and gas totally. It solved the material blanking problem when using the single-layer rotor to measure powder.
The FB-CRM Coriolis cement raw meal powder quantitative feeding system is composed of feeding equipment, Coriolis powder mass flow meter and FB-DACS5000 control system. Cement raw meal powder weighing feeder can improve the stability of cement kiln working conditions, increase stage time and clinker strength, save energy and reduce consumption, and extend the service life of refractory materials.
The FB-CCM/CIM/CPM Tank Loading Mass Flow Meter realizes quantitative and accurate loading and one-button operation of powdered bulk materials, greatly improves loading efficiency, saving labor costs and improves working environment. At the same time, combining with other intelligent automation devices, the bulk powder process is fully automated, which is a new type of environmentally-friendly quantitative loading equipment.
FB-CRC pulverized coal quantitative feeding system consists of feeding equipment, Coriolis powder mass flow meter, gas-solid injector and FB-DACS5000 control system. In view of the characteristics of pulverized coal that is prone to caking, material gushing, and gas upward channeling, a steady-flow feeding system is configured to improve feeding stability and metering accuracy.
FB-CMF Coriolis powder material weighing feeder is mainly used for batching and metering of small-flow powdery materials such as fly ash, kiln ash, slag powder, etc. It is widely used in building materials, metallurgy, steel, chemical and other industries.
FB-RCM type granular material weighing scale, clinker scale and rotor scale have simple measuring principle and compact structure. They can withstand high temperatures below 250℃, have low failure rate and are easy to maintain. The scale structure is fully sealed and will not cause environmental problems. , there is no need to install a separate valve, and the cement clinker unloading speed can be controlled by its own speed.
FB-WFM/L quantitative belt scale is an ideal system equipment for automatic and continuous weighing, quantitative feeding and batching of bulk and granular materials. It is widely used in various related industries such as building materials, chemicals, coal, ports, ceramics, grain, and feed.
FB-WFS micro belt scale is an ideal equipment for continuous weighing and feeding of bulk materials of 20~3000kg/h. It is a product that integrates weighing and quantitative control.

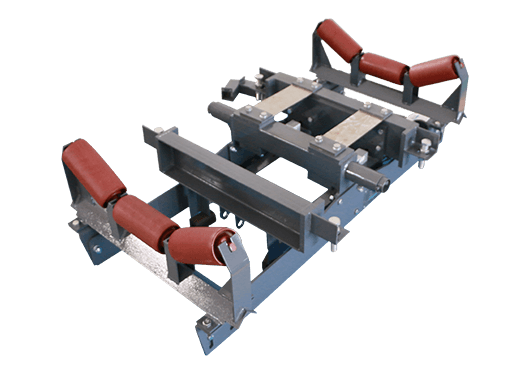

FB-BMP dual-idler Electronic Belt Weighing system is installed on the belt conveyor and is used for continuous measurement of the transported materials.
Screw weighing feeder is a kind of measuring equipment for feeding control, dynamic weighing and continuously conveying powder materials.The screw feeder has two types: single tube single layer and double tubes, double layers. If it is the former, it can realize weighing and conveying at the same time. IF it is the latter, the above undertakes steady flow an conveying, and the bottom undertakes measurement and conveying that can have better steady flow effect and save spaces.
